Use Case Diagram - UC-1-Execution of Urban Services link

Jump to:

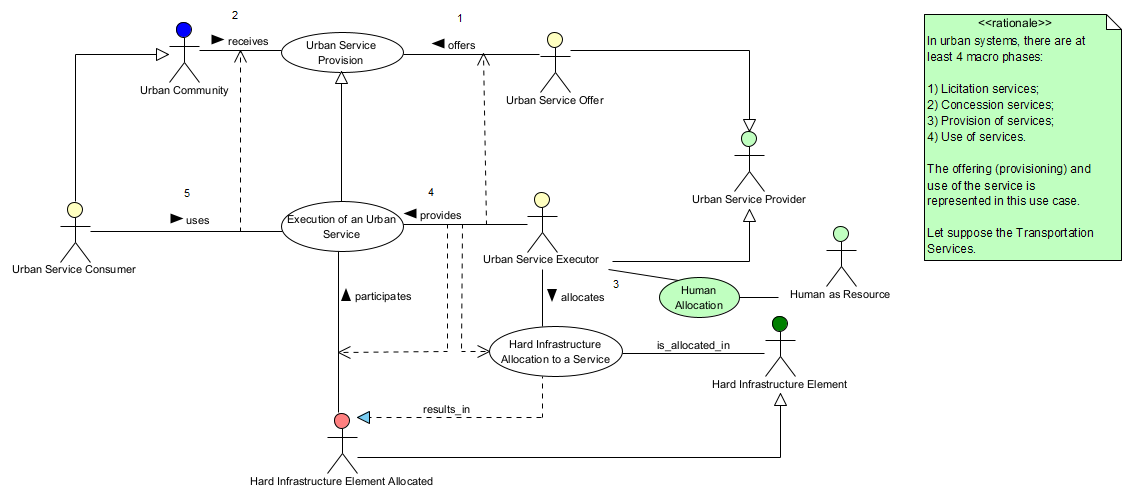

uses:Association offers:Association receives:Association :Generalization :Generalization provides:Association allocates:Association is_allocated_in:Association :Generalization participates:Association :Dependency :Dependency results_in:Realization :Dependency :Dependency :Generalization :Generalization :Association :Association Human Allocation:Use Case Human as Resource:Actor 5:Freehand Shape 5:Freehand Shape 5:Freehand Shape 5:Freehand Shape 5:Freehand Shape In urban systems, there are at least 4 macro phases: 1) Licitation services; 2) Concession services; 3) Provision of services; 4) Use of services. The offering (provisioning) and use of the service is represented in this use case. Let suppose the Transportation Services. :Note Urban Service Provider:Actor Hard Infrastructure Element Allocated:Actor Urban Service Executor:Actor Urban Service Provision:Use Case Urban Community:Actor Hard Infrastructure Allocation to a Service:Use Case Hard Infrastructure Element:Actor Execution of an Urban Service:Use Case Urban Service Offer:Actor Urban Service Consumer:Actor

Model Elements
Name Description
  5 : Freehand Shape
  Execution of an Urban Service : Use Case
  Hard Infrastructure Allocation to a Service : Use Case
  Hard Infrastructure Element : Actor
  Hard Infrastructure Element Allocated : Actor
  Human Allocation : Use Case
  Human as Resource : Actor
  Urban Community : Actor
  Urban Service Consumer : Actor
  Urban Service Executor : Actor
  Urban Service Offer : Actor
  Urban Service Provider : Actor
  Urban Service Provision : Use Case
  N/A : Note

In urban systems, there are at least 4 macro phases:



1) Licitation services;

2) Concession services;

3) Provision of services;

4) Use of services.



The offering (provisioning) and use of the service is represented in this use case.



Let suppose the Transportation Services.
